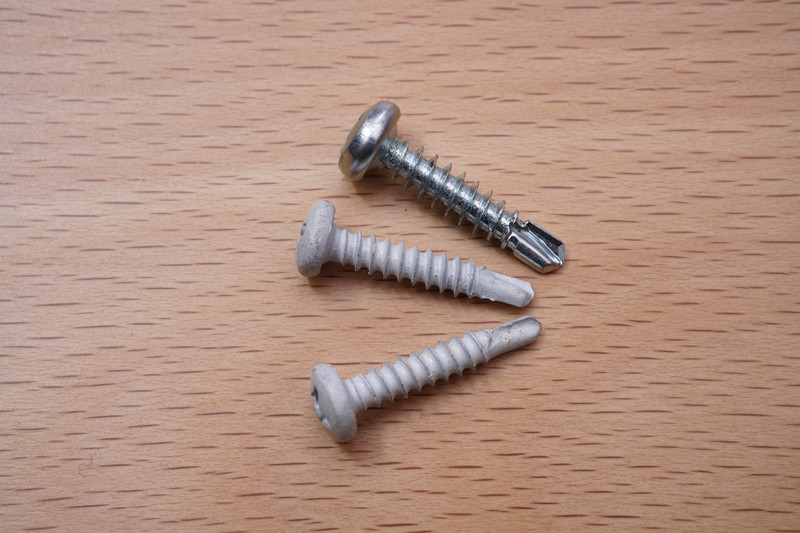

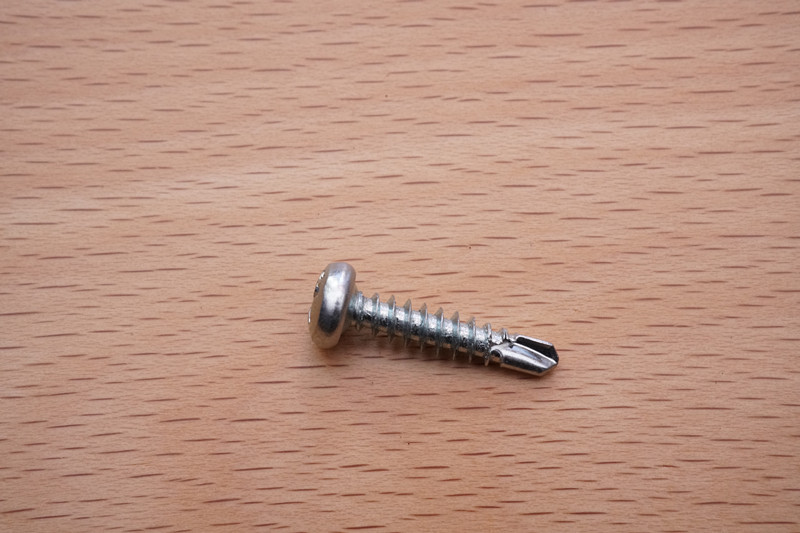

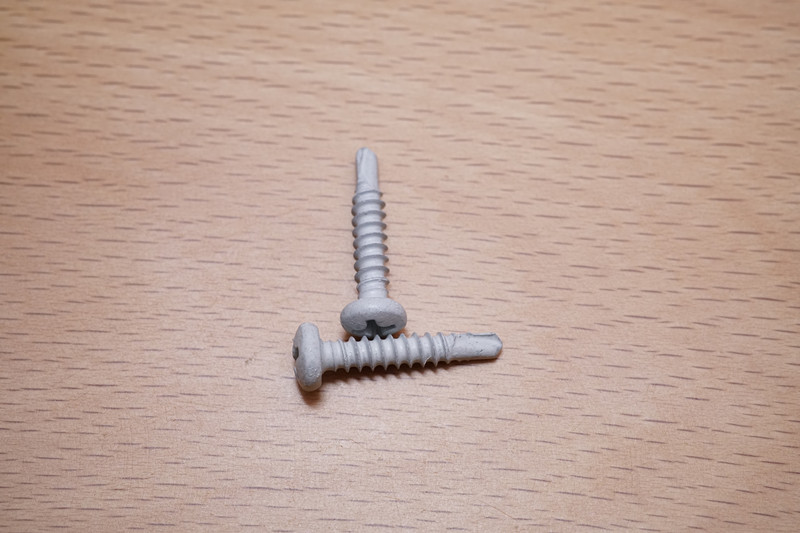

PAN HEAD SELF DRILLING SCREW
FEATURES
- For quick joining of sheet Steel to sheet Steel without the need for pre-drilling.
- Good for fixing cavity trays, ducting and Steel panels.
- Can also be used for temporary fixing.

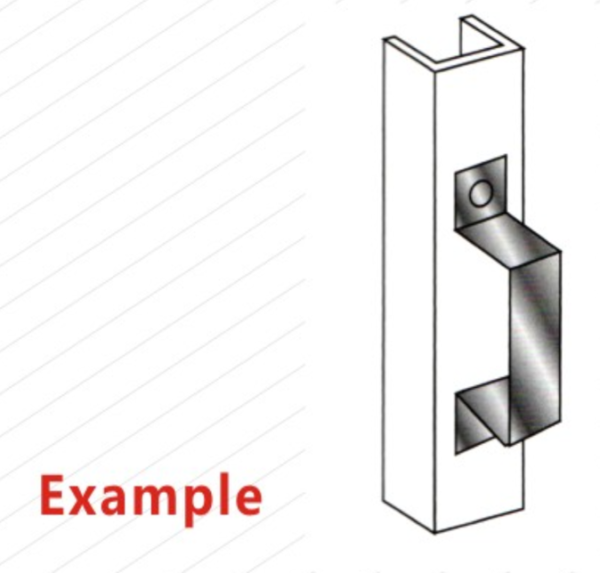

APPLICATIONS
- Brackets.
- Fixing.
- HVAV, electrical trim accessories to steel framing.
- Residential steel frame construction.
- Hat channel to stud.
- Stud splicing.
- Track to stud.
| HEAD TYPE | PAN HEAD |
| DRIVE TYPE | CROSS |
| THREAD TYPE | TYPE AB |
| PART NO. | SIZE IFI | SIZE DIN | POINT NO. |
| PN06000 | 6#-20*3/8"～6#-20*3" | 3.5-20*9.5～3.5-20*75 | 2# |
| PN07000 | 7#-19*3/8"～7#-19*3" | 3.9-19*9.5～3.9-19*75 | 2# |
| PN08000 | 8#-18*3/8"～8#-18*3" | 4.2-18*9.5～4.2-18*75 | 2#,3# |
| PN10000 | 10#-16*1/2"～10#-16*4" | 4.8-16*13～4.8-16*100 | 2#,3# |
| PN12000 | 12#-14*1/2"～12#-14*5" | 5.5-14*13～5.5-14*125 | 2#,3#,4#,5# |
| PN14000 | 14#-14*1/2"～14#-14*8" | 6.3-14*13～6.3-14*200 | 2#,3#,4#,5# |
